[FLASH-USERS] Real parameter 'smallrho' error when running FLASH4.8

[Anock Somadder]

Dear All,

I am facing an error when running FLASH4 with 'mpirun -np 1 flash4' on my
laptop. The error is following :
MPI_Init status:           0
 MPI_Init completed:           0
 RuntimeParameters_read:  ignoring unknown parameter
"mpole_3daxisymmetry"...
 RuntimeParameters_read:  ignoring unknown parameter
"mpole_PrintRadialInfo"...
 RuntimeParameters_read:  ignoring unknown parameter
"mpole_IgnoreInnerZone"...
 RuntimeParameters_read:  ignoring unknown parameter
"mpole_ZoneRadiusFraction_1"...
 RuntimeParameters_read:  ignoring unknown parameter
"mpole_ZoneExponent_1"...
 RuntimeParameters_read:  ignoring unknown parameter "mpole_ZoneScalar_1"...
 RuntimeParameters_read:  ignoring unknown parameter "mpole_ZoneType_1"...
 RuntimeParameters_read:  ignoring unknown parameter "use_gravConsv"...
 RuntimeParameters_read:  ignoring unknown parameter "use_gravPotUpdate"...
 RuntimeParameters_read:  ignoring unknown parameter "Lneut"...
 RuntimeParameters_read:  ignoring unknown parameter "Tneut"...
 RuntimeParameters_read:  ignoring unknown parameter "heatTimeFac"...
 RuntimeParameters_read:  ignoring unknown parameter "useHalfState"...
 RuntimeParameters_read:  ignoring unknown parameter "smallrho"...
 NOTE: Enabling curvilinear,
cartesian_pm/cylindrical_pm/spherical_pm/polar_pm  so far was F F F F
 Grid_init: resolution based on runtime params:
  lrefine          dx
      1      25000000.000
      2      12500000.000
      3       6250000.000
      4       3125000.000
      5       1562500.000
      6        781250.000
 MaterialProperties initialized
 Cosmology initialized
 Setting rt_leakNumTht/Phi=1 because NDIM=1
 RadTrans: setting leak_subCommSize to meshNumProcs
 RadTrans initialized
 Source terms initialized
 WARNING: requested real parameter 'smallrho' not found


 Driver_abort called. See log file for details.
 Error message is ERROR: cannot locate real runtime parameter.
 Calling MPI_Abort() for shutdown in   2 seconds!

--------------------------------------------------------------------------
MPI_ABORT was invoked on rank 0 in communicator MPI_COMM_WORLD
with errorcode 1.

NOTE: invoking MPI_ABORT causes Open MPI to kill all MPI processes.
You may or may not see output from other processes, depending on
exactly when Open MPI kills them.

I set up ccsn1d with ./setup CCSN -auto -1d +spherical -objdir ccsn1d and
added eos file LS220_240r_140t_50y_analmu_20120628_SVNr28.h5.

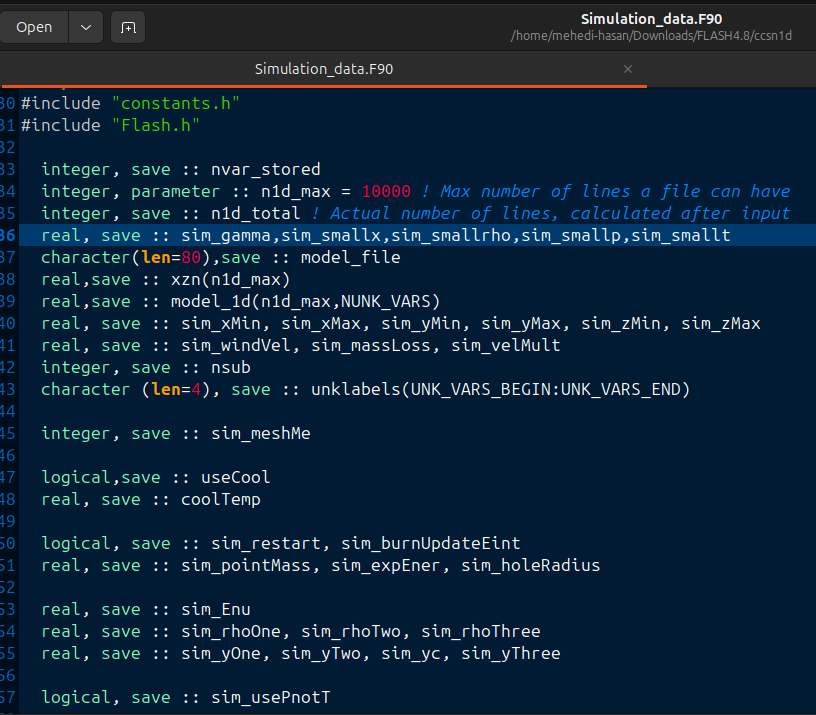

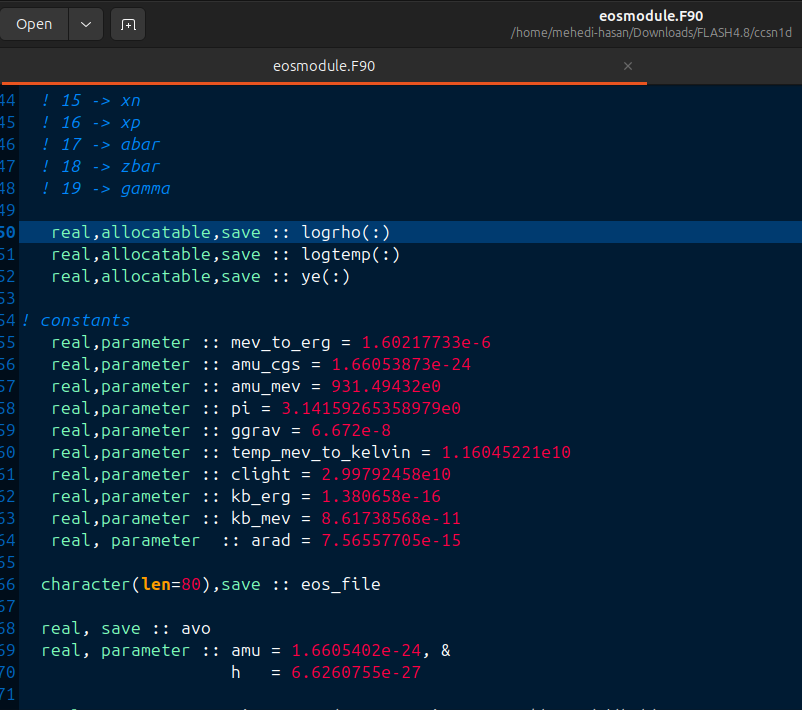

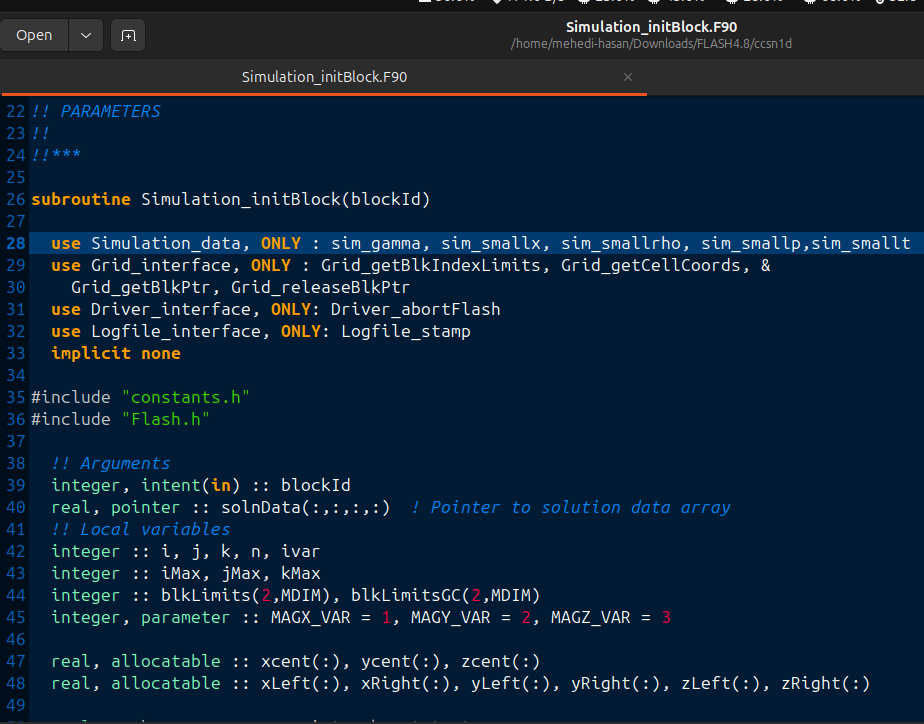

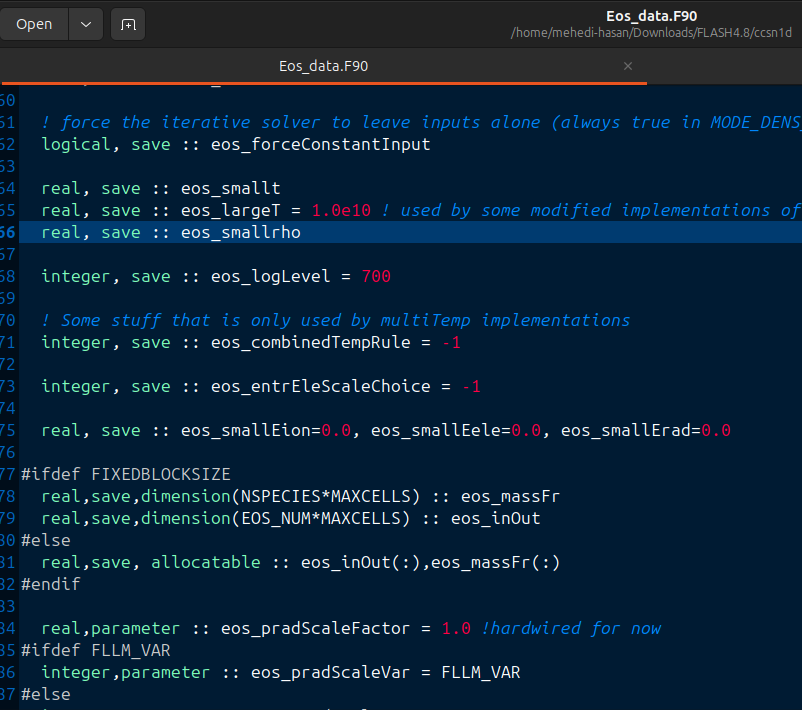

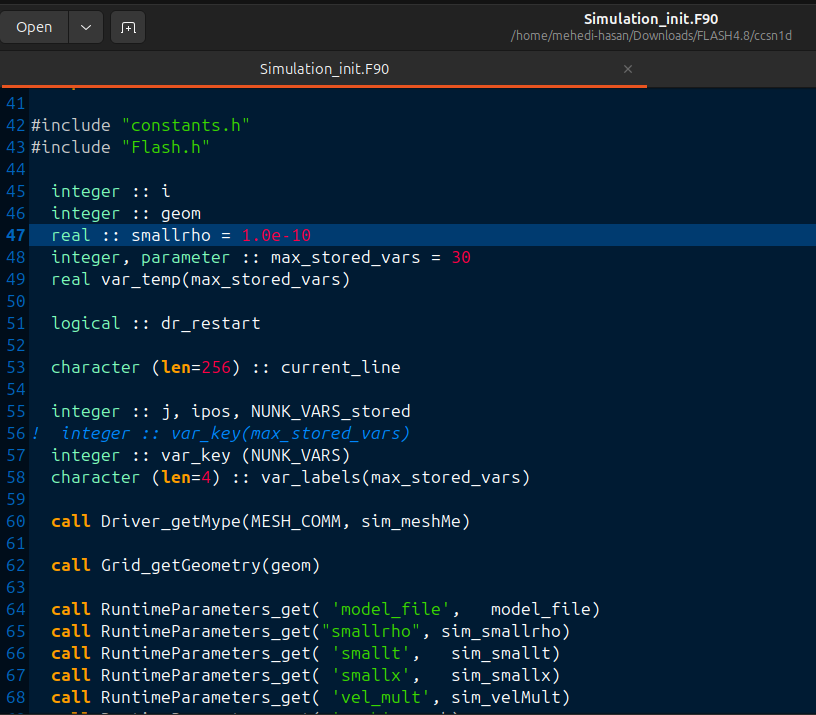

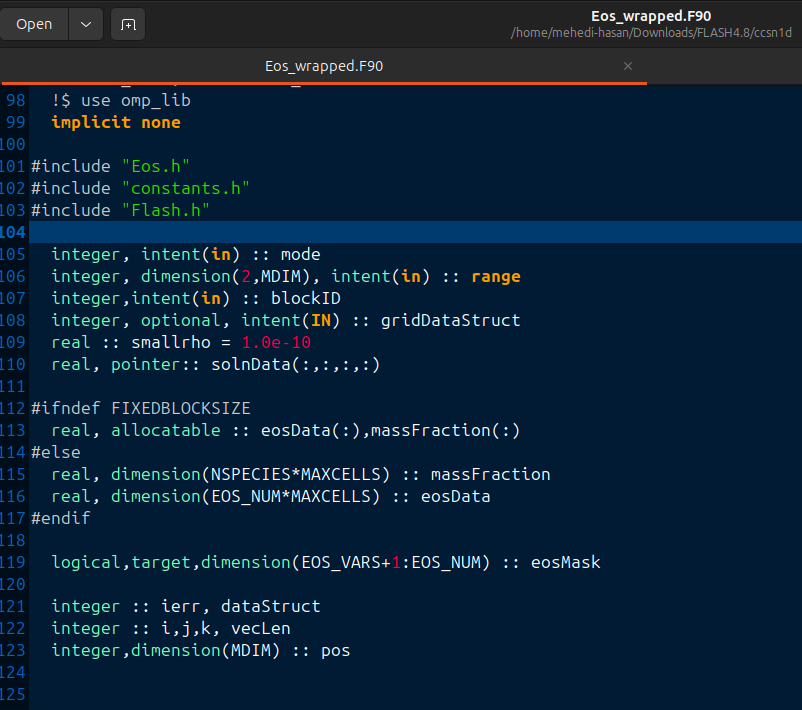

I make some changes on flash.par, simulation_data.F90, simulation_init.F90,
simulation_init.F90, EOS_data.F90, eosmodule.F90, EOS_wrapped.F90 and

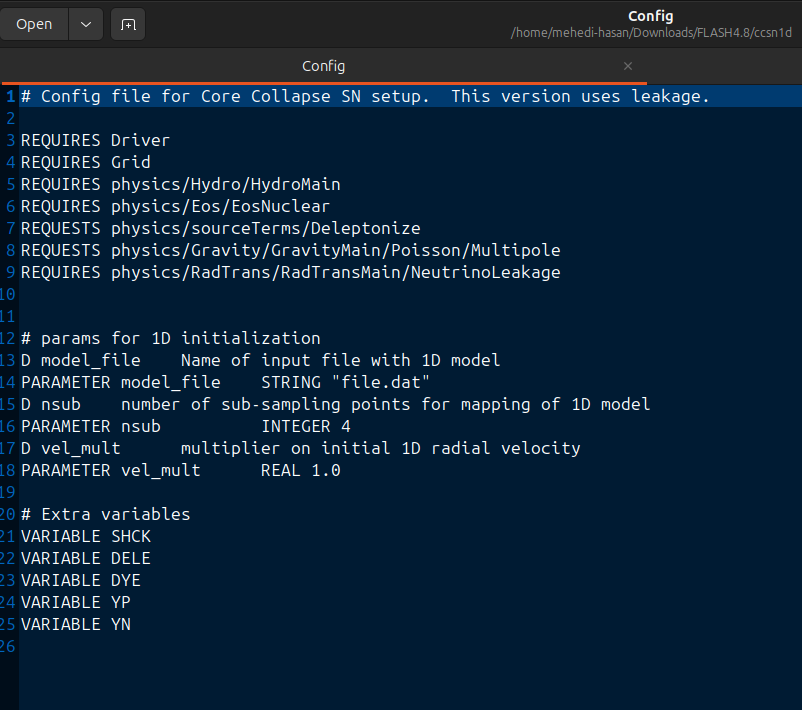

eos_idealGamma.F90 files for each i attach screenshot of them. I also
attached the screenshot of my config file.

I will be very grateful if you help me solve this error.

Best regards,
Anock Somadder
