[FLASH-USERS] Specialized Refinement Routine: Grid_markRefineSpecialized

[Djibrilla Boureima, Ismael]

Thank you Klaus for getting back to me.

Looking  into CCSN/Grid_markRefineDerefine.F90 (which is the closest to
what I am looking for) I see that Grid_markRefineSpecialized is called
right before Grid_markRefineDerefine returns. I made the call from the same
location in my setup, and I still see no change. Following are the lines in
my Grid_markRefineDerefin routine :



*spec(1:3) = 0.0   ! setting origin coordinates, and of course spec was
initially declared as a 4 dimensional array     spec(4) = 8.0      !
limiting radius = 8 cm     call
Grid_markRefineSpecialized(INRADIUS,4,spec,1)  ! All blocks below r = 8cm
should be of refinement level = 1*

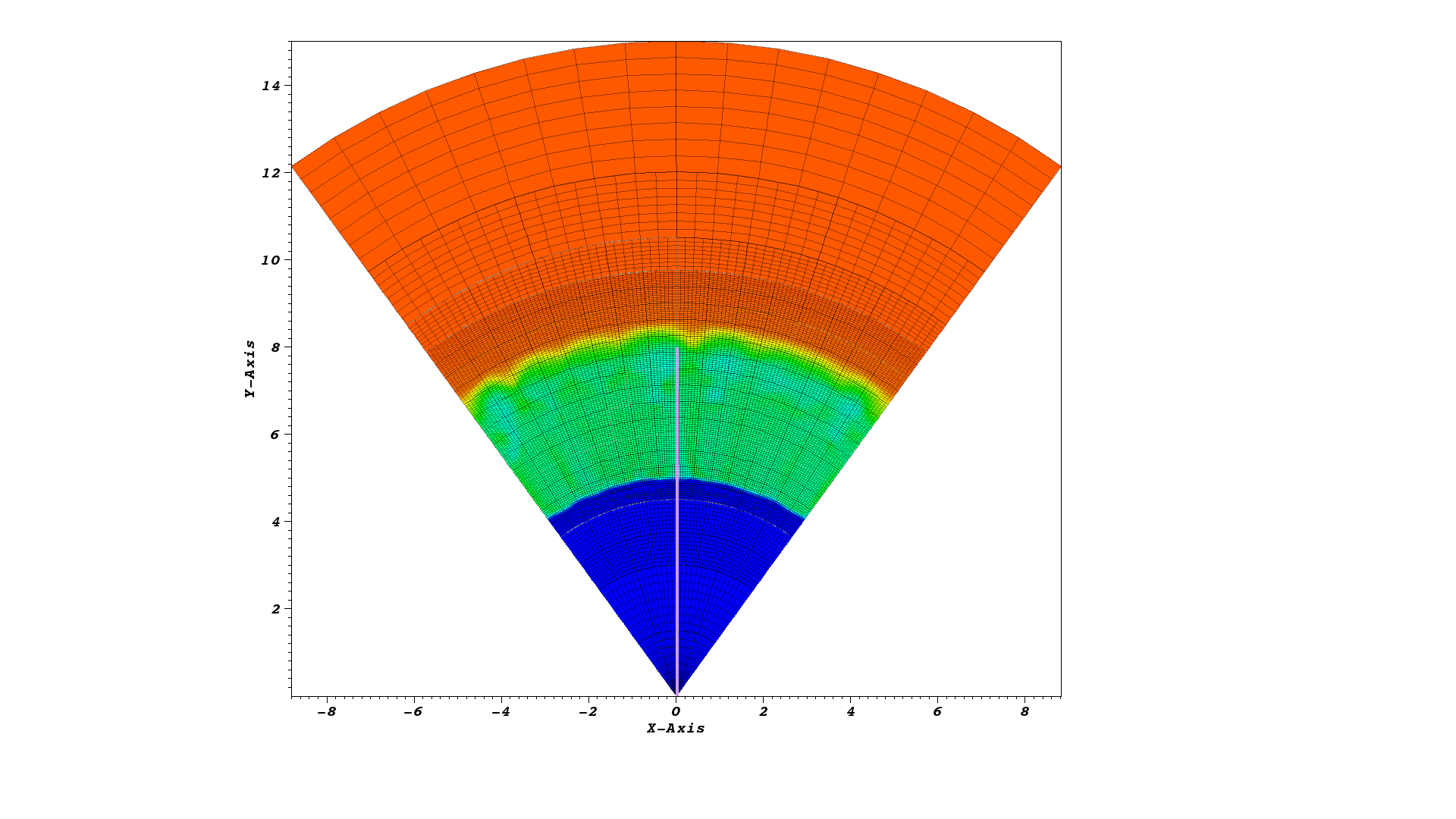

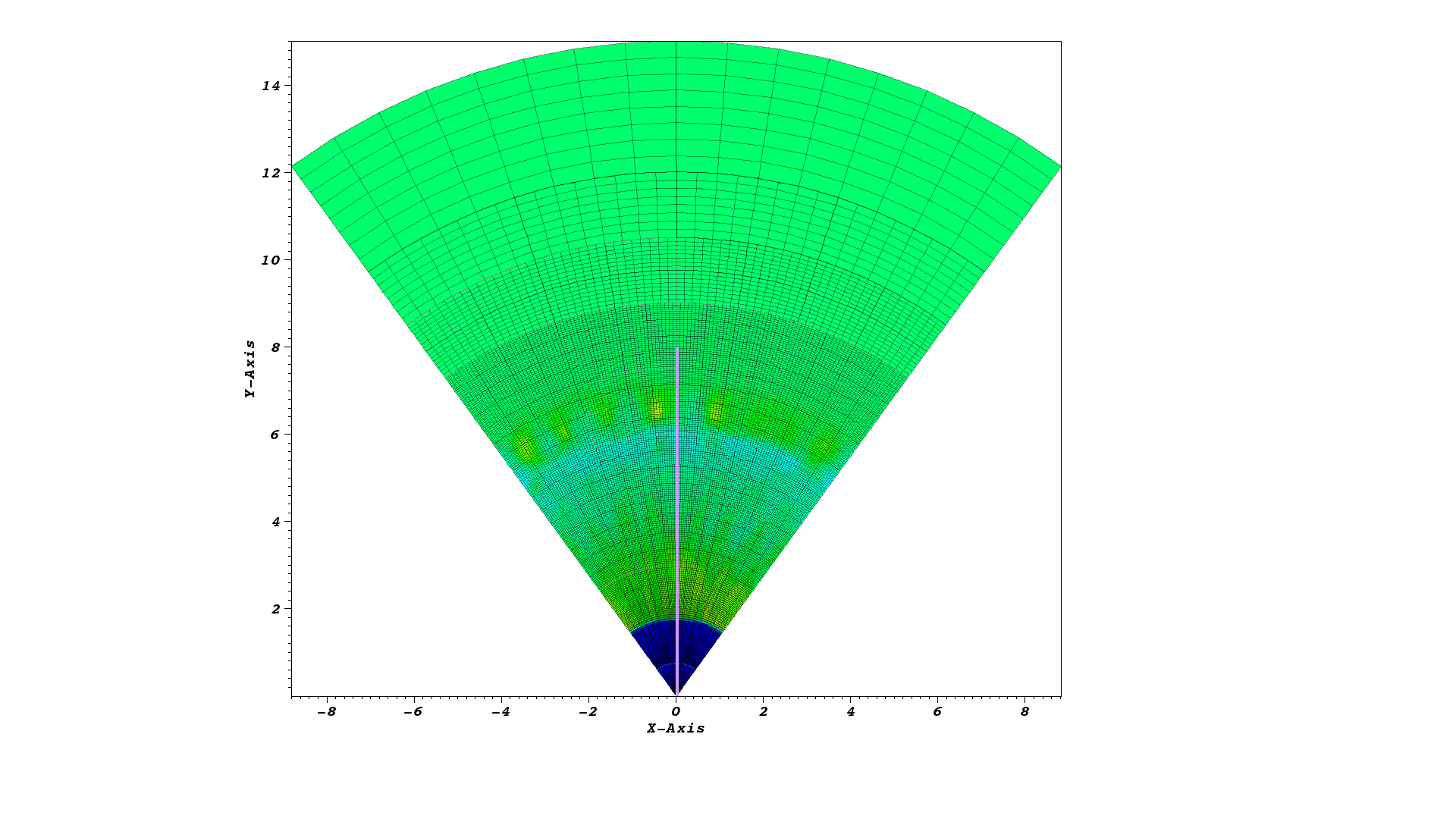

Unfortunately,  I get blocks below r = 8cm with refinement level > 1. Refer
to attached pictures in which the AMR grid is displayed on pressure field.
I am not sure whether the grid dimension and/or geometry makes any
difference, but It seems not to work for me.

Best,

Ismael
