[FLASH-USERS] Expansion of Target

[Brian Kraus]

Hi Phani Sri and all,

This seems the same as an issue I had been seeing when I put a high-density
layer into the Laser Slab. I modified the region between 1 to 2 microns
into the target to have the density of Ti instead of Al, and when I evolve
the system I see artificial shocks develop from the boundaries between low
and high density solid. I am not sure if these shocks affect any dynamics
from the laser, but it would be nice to properly model a solid that does
not support these relaxation shocks.

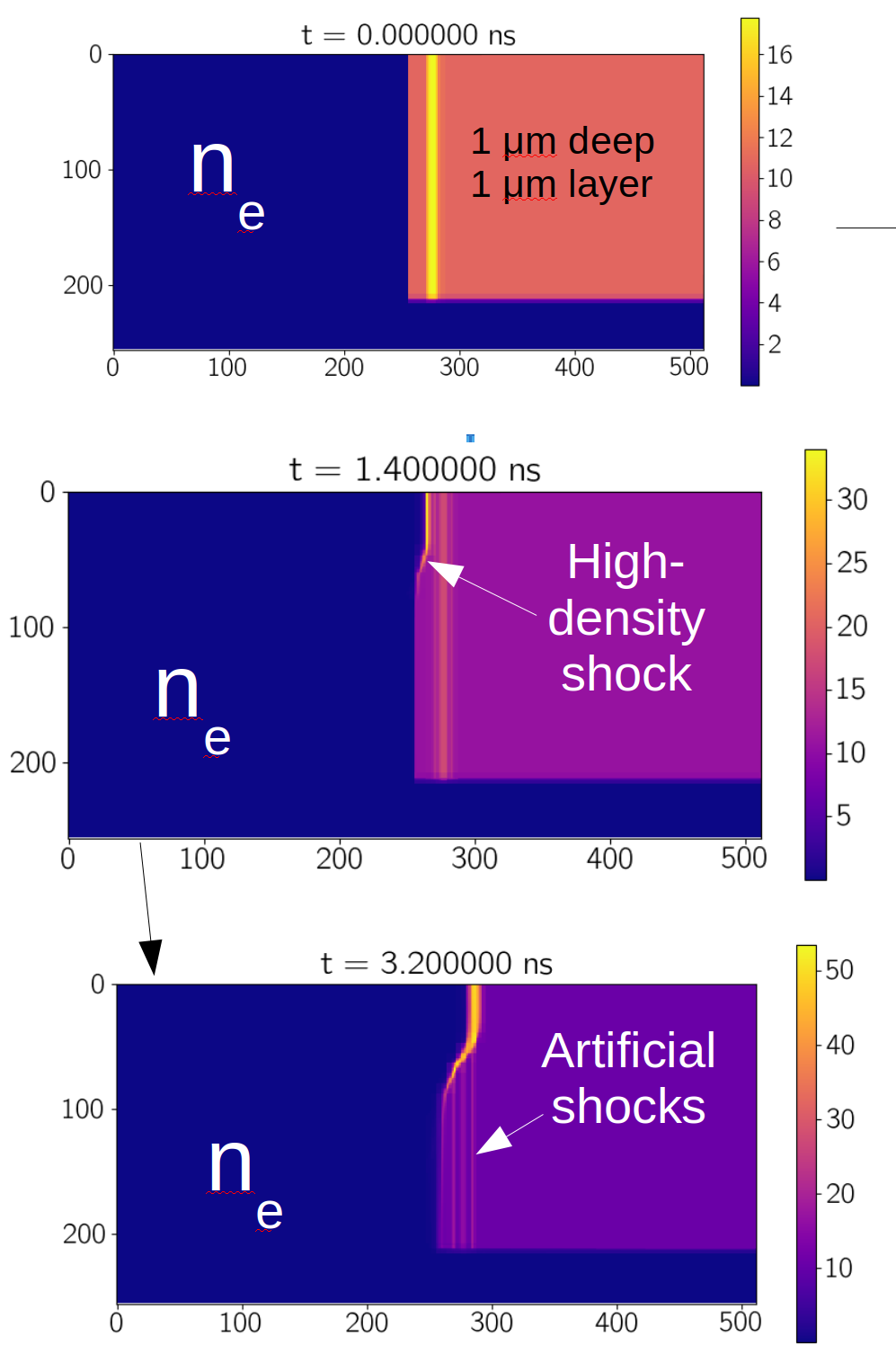

[image: Screenshot from 2019-04-25 11-55-39.png]

Thank you for any advice on either Phani Sri's problem or this one.

Best,
Brian

--
Brian Kraus
Princeton Plasma Physics Laboratory
Office: (609) 243-3205, Cell: (719) 306-5524
E-mail: bkraus at pppl.gov


On Thu, Apr 25, 2019 at 11:46 AM phani sri <phanisri123 at gmail.com> wrote:

> Hi all, I am Phani Sri working on laser slab problem. i have observed a
> problem of expansion of the whole target  over time instead of expansion at
> the point where laser is focused. I am attaching the pseudo plot of density
> which shows the expansion of the target on either sides.
> Can anyone suggest me an idea regarding the issue.
> Thank You
>
> --
> D. P. S. L. Kameswari,
> Ph. D Scholar (Physics)
> ACRHEM
> University Of Hyderabad,
> Hyderabad,
> e-mail:phanisri123 at gmail.com
> <id%3Aphanisri123 at gmail.com>
>
