[FLASH-USERS] How to make laser ignore hydro boundary conditions

[Reyes, Adam]

Hi Yanfei,

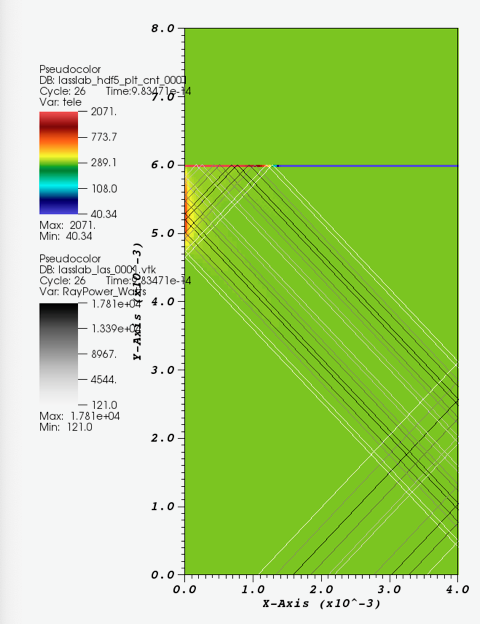

You shouldn’t need to do anything else. Taking the provided laserslab setup and changing the XR boundary to reflecting and setting ed_ignoreBoundaryCondition_1=.true. gives the expected result:



You can see the rays enter the right reflecting boundary and then reflect again when they return.
*********************************************
Adam Reyes


Code Group Leader, Flash Center for Computational Science
Research Scientist, Dept. of Physics and Astronomy
University of Rochester
River Campus: Bausch and Lomb Hall, 369
500 Wilson Blvd. PO Box 270171, Rochester, NY 14627
Email adam.reyes at rochester.edu
Web https://flash.rochester.edu
 (he / him / his)


*********************************************



> On Apr 10, 2024, at 10:32 AM, 胡艳菲 <huyanfeii at 163.com> wrote:
>
> Dear Flash users,
>
> I encountered some problems in the simulation of the 3D in 2D Laserslab model based on cylindrical coordinates  and wanted to do plasma simulation in a closed chamber filled with air pressure.The problems encountered are as follows:
>
> I tried to set up a closed chamber, but it didn't work. I want the hydro boundary to be a closed environment, but the laser can still enter the boundary and interact with the target. I see that if I want to set the hydro boundary condition to "reflect", that is, set "xr_boundary_type = "reflect", yl_boundary_type = "reflect",yr_boundary_type = "reflect", We can use the run parameter "ed_ignoreBoundaryCondition_n" to make the laser ignore boundary conditions, but I added the code "ed_ignoreBoundaryCondition_1=.true." in the.par file, and it didn't take effect. The laser still does not enter the calculation area through the boundary.
>
> I want to know how to make the code for "ed_ignoreBoundaryCondition_1=.true." work. Whether to modify other files. If anyone knows, please let me know, I would appreciate it.
>
> All the best,
>
> Yanfei Hu
>
>
